CableIQ™ Qualification Tester

CableIQ™ Qualification Tester

  • Sees if your existing cabling can support voice, VoIP, 10/100/Gigabit Ethernet.
  • Troubleshoots why existing cabling plant can’t support the desired network bandwidth.
  • Discover what’s at the end of any cable and displays device configuration (speed/duplex/pairing).
  • Frees up switch ports and identifies unused links.
  • Graphically maps wiring configuration and shows distance to faults, graphical wire mapping, opens, and shorts.
  • Locates and traces cable with IntelliTone™ digital signaling technology.

Description

CableIQ network cable qualification test tool is designed for network technicians who need to troubleshoot
connectivity problems and qualify cabling bandwidth. It detects speed and duplex settings of attached
switches and PCs. Intelligent wiremap graphically shows distance to faults (e.g.: pin 1 break at 37 ft).
Lightweight, rugged, reliable unit tests all copper cabling. Its ease and power helps you close trouble
tickets faster and ensure smooth upgrades to higher network speeds.

Accessories

Model Description
MICRO-DIT Micro IT kit (CIQ + MicroScanner2) soft carry duffle
CIQ-COAX CableIQ Coax Adapter Kit—includes F-connector, BNC and RCA connectors
CIQ-IDK24 CableIQ Remote Identifier Kit—includes remote identifier numbers 2-4
CIQ-IDK57 CableIQ Remote Identifier Kit—includes remote identifier numbers 5-7
CIQ-RJA RJ-45/11 modular adapter
CIQ-SPKR CableIQ speaker wire adapter
CIQ-WM CableIQ main wiremap adapter (replacement part for lost or damaged unit)
CLIP-SET Clip Set – includes RJ-45-to-8-clip test lead

Additional information

Model CIQ-100

CableIQ with remote adapter, soft carrying case and four AA batteries
Model CIQ-KIT

CableIQ main unit, eight remote adapters, Reporter software, IntelliTone 200 Digital Probe, (2) RJ45-RJ45 patch cords, USB cable, coax ‘F’ push-on adapter, 5-ohm coax patch cord, RJ45/11 universal coupler, RJ11-RJ11 patch cord, four AA batteries, and hard carry case
Model CIQ-KRQ

CableIQ, RJ-45 patch cord (2), RJ-11 patch cord (2), bare wire adapter, speaker wire adapter, coax cable, coax BNC adapter, coax RCA adapter, “Qualified” abels (50) and a soft carrying case
Model CIQ-FTKSFP

Copper and Fiber Technician’s Kit—includes the CableIQ (CIQ-KIT) and SimpliFiber Pro (FTK1000) Fiber Test Kit. See Photo

Related products

  • IntelliTone™ Pro 200 LAN Toner and Probe

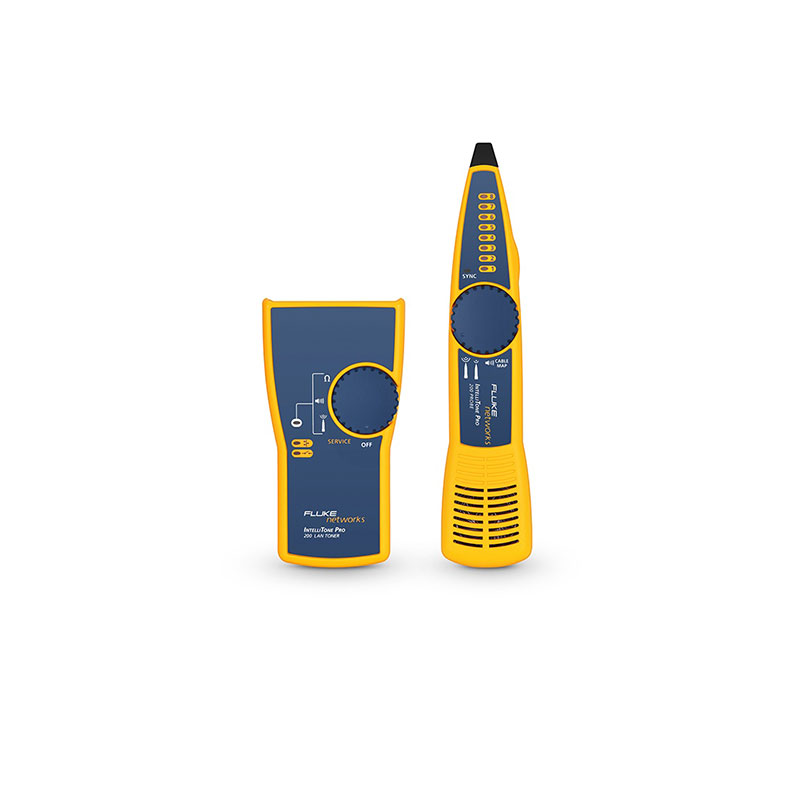

    IntelliTone™ Pro 200 LAN Toner and Probe
    • Ends cable location confusion—decisively rejects noise and false signals
    • Locates cables on active networks—even when terminated at a switch
    • Isolates cable and wiring within a bundle despite cable bleed
    • Confirms cable location, verifies continuity, and detects faults (opens, shorts, and reversed pairs) in one step
    Read more
  • Fiber Optic Cleaning Kits

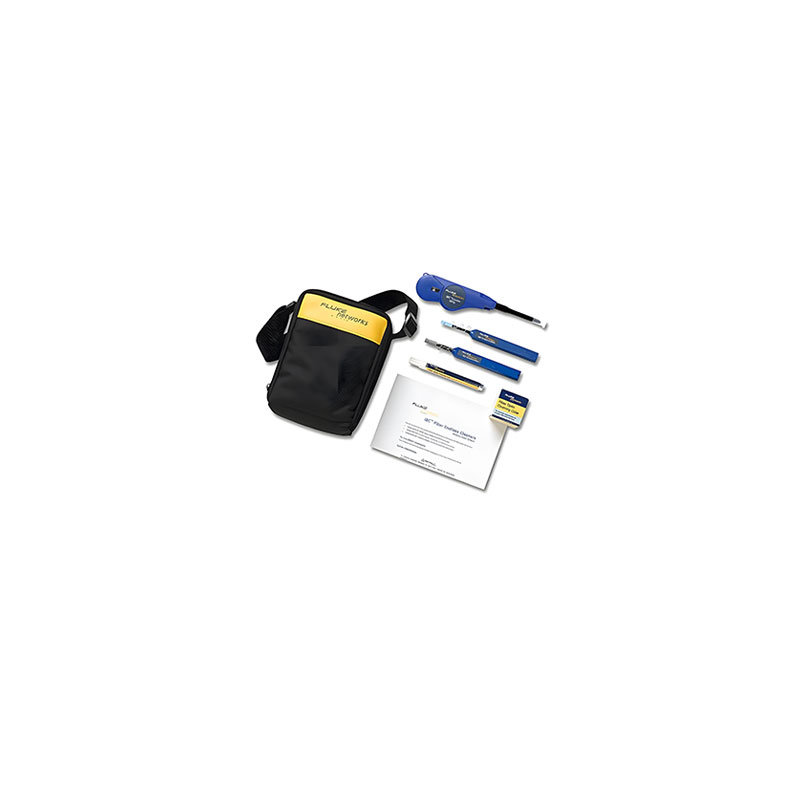

    Fiber Optic Cleaning Kits
    • Everything needed for precision cleaning of end-faces on both patch cords and inside ports.
    • Compact form factor options available. Specially formulated solvent dissolves contaminants, neutralizes static charge and encapsulates particles for removal.
    • A range of wiper swabs enable decontamination of all styles of fiber optic connections.
    Read more
  • TS®90/TS®100 Cable Fault Finder

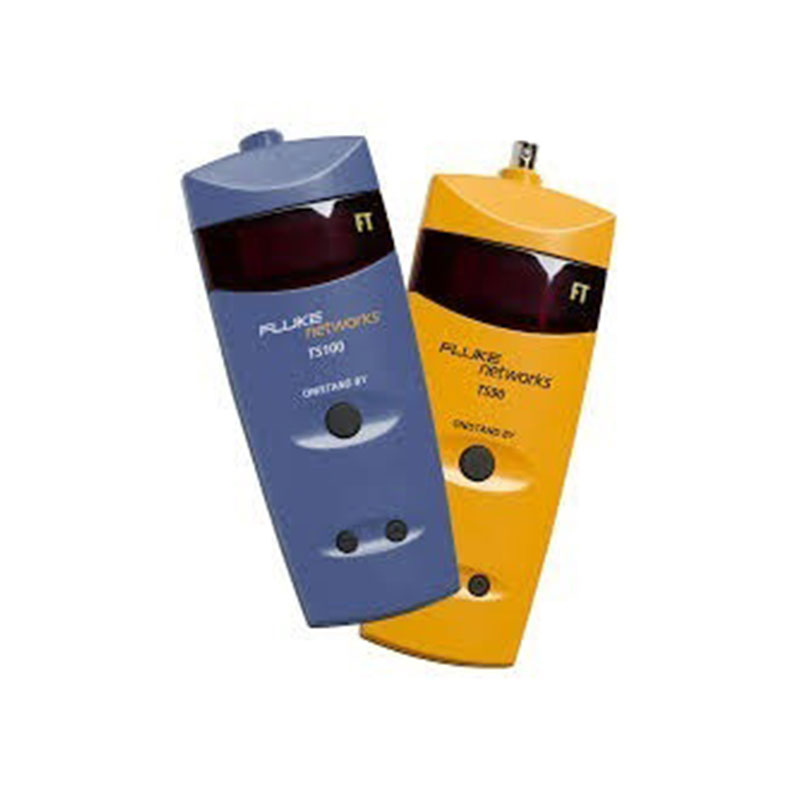

    TS®90/TS®100 Cable Fault Finder
