OTDR II

OTDR II

  • Includes the intelligent Optical Link Mapper (iOLM), which turns complicated graphs into an easy to read diagram displaying all events along the link with pass/fail status for each event
  • Handy, lightweight, powerful, tablet-inspired design
  • Wi-Fi for data download
  • Event deadzone : 0.5m MM/ 0.7m SM
  • 7-inch, outdoor-enhanced touchscreen
  • 12-hour battery life
  • Dynamic range of up to 36 dB in single-mode and 29 dB in multimode
  • Professional PDF reporting

Description

The OTDR II is optimised for multimode and singlemode fibre testing, this fully featured, easy to use, dedicated OTDR with tablet-inspired design is the perfect tool for troubleshooting, certification and everyday field testing in fibre optic networks.

Accessories

Part no. Recommended Accessories
R230002 Fibre Inspection Probe (100x, 200x and 400x
magnification), universal 2.5mm adapter tips and
soft pouch
R230050 OTDR II – Visualt Fault Locator and Power Meter
Option for MM and SM, SC adapters
R230051 Fastreporter 2 PC software
SOFT230OTDR OTDR II trace option

Additional information

Part No. R230000

OTDR II – Quad OTDR with IOLM, ICERT (certification to international standards), SC adapters (multimode: SC/UPC, single-mode: SC/ APC), visual fault locator, power supply, battery and carrying case

Related products

  • LanTEK III

    LanTEK III
    • Troubleshooting features that save time and money: Locate hidden connections, splices and cable faults using Time Domain Return Loss (TDRL) and Time Domain Crosstalk (TDX)
    • Share test data: Provides mobile device connectivity using the USB Wi-Fi adapter and free TREND AnyWARE app
    • Long life battery: 18 hours continuous use in the field
    • New permanent link adapter saves money: Reduce down time and lower maintenance costs with field replaceable RJ45 contacts
    • LanTEK III Talk Set: Talk to a colleague over copper or fibre links
    • Tone generator on both test units: Ability to identify and trace cables with a compatible amplifier probe (R180001)
    • Autotest on both test units: Comprehensive test results within seconds. Allows one person testing
    • Rugged design: Rubberised housing, protected screen and protected measurement port
    • Independently verified: Accuracy verified by Intertek
    Read more
  • SecuriTEST IP

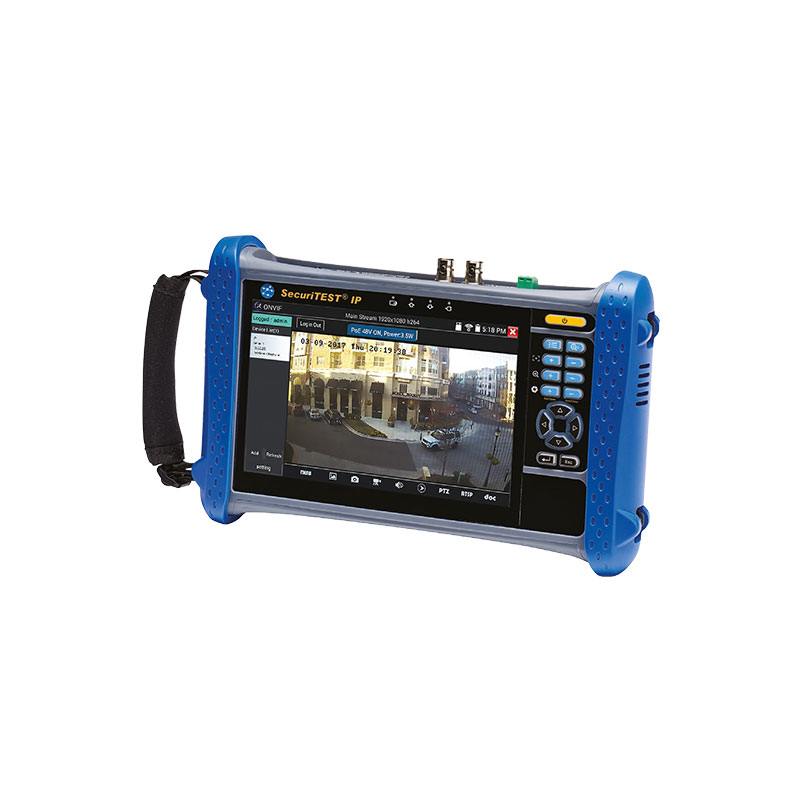

    SecuriTEST IP
