Specifications
-
Processor / System Bus
1 x Socket LGA1151
Intel® Xeon® processor E-2100 family
Intel® Xeon® processor E-2200 family
The 8th/9th generation Intel® Core™ i3/Pentium®/Celeron® Processor
*Refer to support page for more information -
Generation
E10 -
Core Logic
Intel® C246 Chipset -
Memory
Total Slots : 4 (2-channel)
Capacity : Maximum up to 128GB UDIMM
Memory Type :
DDR4 2666/2400 non ECC and with ECC
Memory Size :
32GB, 16GB, 8GB -
Expansion Slots
1 x PCIe x16 slots (Gen3 x16/x8 link)
1 x PCIe x8 slots (Gen3 x0/x8 link)
1 x PCIe x8 slot (Gen3 x4 link)
1 x PCI slot
1 x MIO slot -
Storage
Storage Controller :
Intel® C246 Chipset
4 x SATA3 6Gb/s ports
2 x M.2 connector
Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
(Support Software RAID 0, 1, 5, 10 )
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card -
Drive Bays
4 x 3.5″/2.5″ Hot-swap Storage Bays
(Backplane supports 4 x SATA 6Gbps & SAS 12Gbps)2 x M.2 Socket (up to 22110 module)
-NGFF1_M.2 Socket, with M key, (Gen3 x4 link or SATA mode)
-NGFF2_M.2 Socket, with M key, (Gen3 x1 link or SATA mode) -
Auxiliary Storage FDD/CD/DVD
4 x 5.25″ Media Bays
(Optional DVD-ROM/DVD-RW) -
Networking
4 x Intel® I210AT + 1 x Mgmt LAN -
Graphic
Aspeed AST2500 with 64MB VRAM -
Front I/O Ports
2 x USB 3.2 Gen1 ports
2 x USB 2.0 ports
1 x Headphone jack (with optional MIO card)
1 x Microphone jack (with optional MIO card)
1 x Power Botton
1 x Reset Botton -

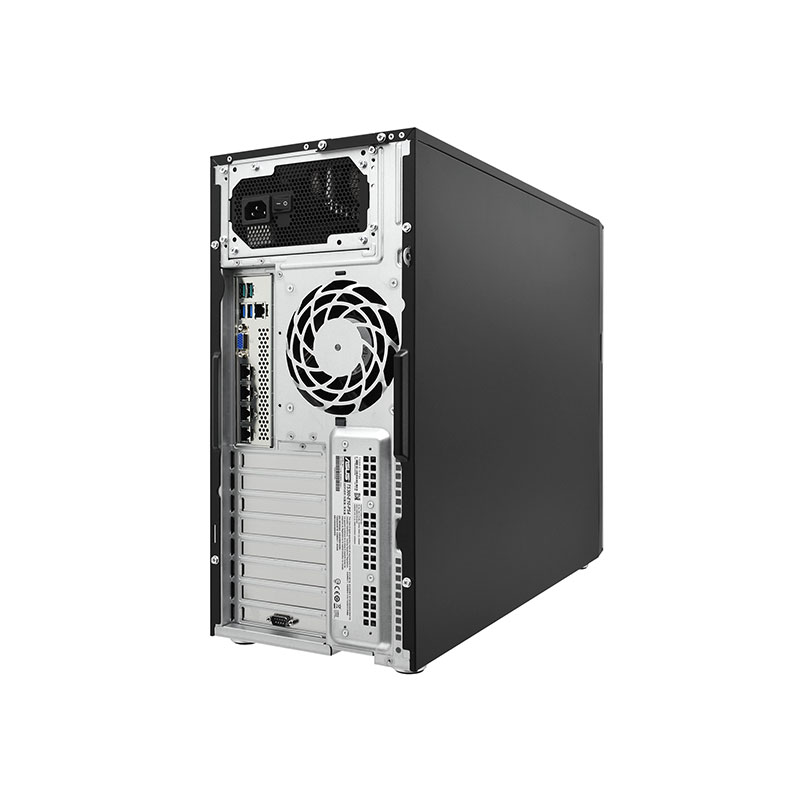

Rear I/O Ports
4 x Gigabit LAN ports (RJ45)
1 x Management port (RJ45)
2 x USB 3.2 Gen2 ports
2 x USB 3.2 Gen1 ports
1 x VGA
1 x COM port -
Switch/LED
Front Switch/LED:
1 x Power Button
1 x Power LED
1 x Reset Switch
1 x Location LED
1 x HDD Access LED
1 x Message LED
2 x LAN LED -
OS Support
-
Management Solution
ASUS Control Center -
ASMB9-iKVM module (optional)
-
Regulatory Compliance
BSMI, CE, FCC(Class A) -
Dimensions
445mm * 217.5mm * 545mm
17.91″ x 8.54″ x 21.45″ -
Form Factor
5U/Tower -
Weight
Net Weight: 15.0 Kg
Gross Weight: 18.9 Kg -
Power Supply
500W 80+ Gold ATX Power Supply
Rating: 100-240Vac, 7-3.5A, 50/60Hz Class I
or
550W 80+ Gold ATX Power Supply
Rating: 100-240Vac, 9-4.5A, 50-60Hz Class I -
Environment
Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
